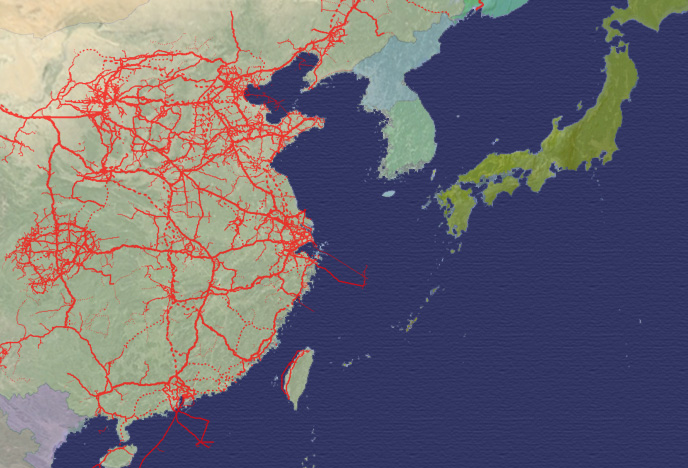

China Petroleum Map shows the whole picture of China’s petroleum industry and presents the logic relations among various projects. For example, an existing oilfield in the map is linked via a “regional level” pipeline to its nearby “regional level” crude oil storage. From there originates a higher capacity pipeline, and the crude oil is further linked to a refinery, and then to an oil product storage or terminal via oil product network system.

Click following project icon to learn about the recorded projects and their case studies on how to decode the map into what, where, why and when. For a complete namelist of these project, please refer to the project leads & directories. For China's natural gas projects, please refer to the China Natural Gas Map.
